36" x 36" Aluminum Precast Vault Drainage Floor Door

BAC-PCM-4
36" wide x 36" high

SKU:
BAC-PCM-4
UPC:
718910635617
Lead Time:
2 - 3 weeks
$7,217.28 $5,155.20
(You save $2,062.08)

Product Description

Product Spec Sheet: download-button.jpg

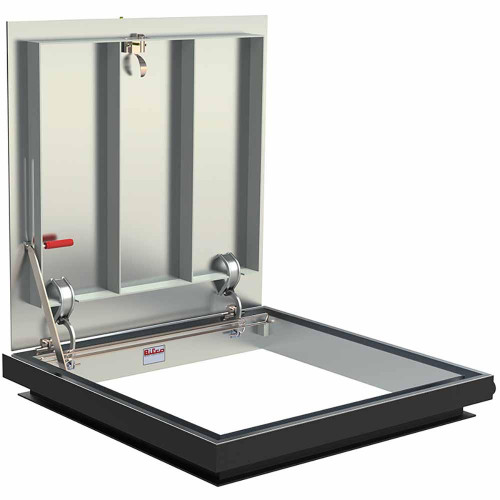

36" x 36" Aluminum Precast Vault Drainage Floor Door

Suppose you want to reduce time and cost for the labor required in casting a door into a concrete vault. In that case, our BAC-PCM Aluminum Precast Vault Drainage Floor Door has several innovative features that can achieve it, including its aluminum material and peel-off covering that protects the door finish during the pouring process.

It has a 6" high frame with not vertical projections below the frame to simplify installation on a standard concrete vault form. Its door has a 1/4" aluminum 6061-T6 diamond pattern plate to withstand a live load of 300 pounds per square foot. Its frame has a 1/4" extruded aluminum 6063-T5 channel shaped to provide a drainage gutter and an overall depth of 6" for the concrete slab thickness. It also comes with a heavy steel automatic hold open arm that includes a red vinyl grip for handy release.

Moreover, this BAC-PCM has a Type 316 stainless steel snap lock with a removable handle. Avail this floor door today in mill finish with a bituminous coating applied to the frame's exterior. We offer several standard single leaf sizes to meet unique access requirements.

Material : 1/4" Aluminum Diamond-pattern plate cover, 1/4" Aluminum Channel Frame for 6" slab thickness

Hinges : Heavy forged brass hinges with 3/8" (9 mm) type 316 stainless steel hinge pins.

Latch : Flush spring loaded snap lock operable from the outside by a removable handle and from bellow by fixed turn handle

Finish : Mill finish with bituminous coating applied to the exterior of the frame.
