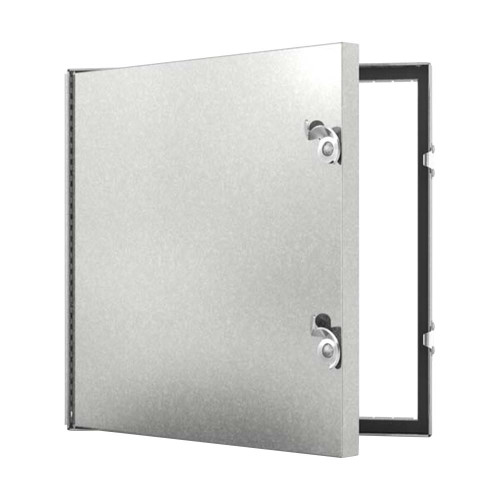

16" x 16" Hinged Duct Access Door

SKU:
BA-HD-5070-16-16'
UPC:
7.95401E+11
Availability:
In Stock
Door Size:
16 wide x 16 high
qb_income_account:
Sales - CAD
qb_product_sales_account:
TD (CDN) - 2522 - 5003171
qb_cogs_account:
Cost of Goods Sold - USD
qb_shipping_line:
Shipping Income - CAD
Dropship_Print:
Yes
Vendor Name:
Acudor-Canada-USD
CustomField_8:
CustomField_8
CustomField_9:
CustomField_9
CustomField_10:
CustomField_10
CustomField_11:
CustomField_11
CustomField_12:
CustomField_12
CustomField_13:
CustomField_13
CustomField_14:
CustomField_14
CustomField_15:
CustomField_15
CustomField_16:
CustomField_16
CustomField_17:
CustomField_17
CustomField_18:
CustomField_18
CustomField_19:
CustomField_19
CustomField_20:
CustomField_20
$42.08 $35.05
(You save $7.03)

products review

Product Description

16" x 16" Hinged Duct Access Panel



Best Access Doors Duct Access Panels are designed to provide convenient, economical access to duct components. The insulated door panel, along with the gasketing between the door and frame assures a tight seal without obstruction in the air system. Duct access panels from Best Access Doors are available in either hinged (BA-HD-5070) or double cam (BA-CD-5080) construction.



download-button.jpg left-arrow.pngDownload Technical Data / Submittal Sheet (BA-HD-5070)



Application



• Assures a tight seal without obstruction in the air system



Product Features



• Insulated door panel, along with the gasketing between the door and frame
• 5/8” notched knock over tabs on the inside of the frame provides for easy installation
• These doors are designed for use in LOW to medium pressure up to 3” static W.G.



BA-HD-5070 Duct Access Door Specifications:



• Material: 24 gauge galvanized steel
• Insulation: Door panel filled with 2" fibreglass insulation (7.7 R factor), compressed into 1".
• Hinge: Continuos aluminum piano hinge
• Latch: Self tightening, hand operated cam latch
• Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and also between frame and duct
• Packaging: Individually wrapped, 1 per box
