What Are the Top 5 Weatherproof & Gasketed Access Panels for Exterior Commercial Applications in Canada? Posted by Best Access Doors Canada on 12th Mar 2026

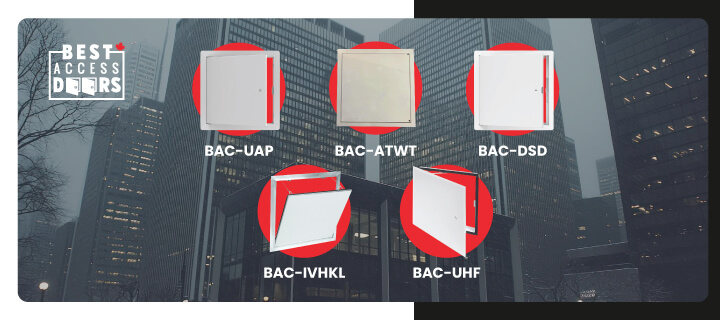

The top five weatherproof and gasketed access panels for exterior commercial applications in Canada are BAC-ATWT airtight & watertight flush access door, BAC-DSD draft stop access panel, BAC-IVHKL Invisa Hatch air/dust resistant drywall inlay, BAC-UAP universal access panel, and BAC-UHF aesthetic access panel with hidden flange. Each panel is suited to different exterior walls and service access conditions.

When these access points are properly gasketed and detailed into the building envelope, they help you control air leakage, limit moisture intrusion, and protect insulation and finishes from long-term damage.

In this article, we’ll look at the weatherproofing features that matter most in access panels and review how each of the five BAC models supports exterior access conditions in Canadian buildings.

What Weatherproofing and Gasketing Features Matter Most for Exterior Applications?

For exterior applications, the most important features are continuous air and water seals, durable gasketing, and robust metal construction that can withstand wind-driven rain and freeze–thaw exposure in cold Canadian climate conditions without creating new leak paths.

Here are some of the features you should focus on:

• Air leakage control: Even in well-insulated buildings, uncontrolled air leakage through the envelope can account for roughly 30–50% of heating and cooling energy use. To avoid this, choose exterior access panels that maintain continuity of the air barrier, especially at service penetrations, risers, and mechanical terminations.
• Water penetration resistance: Look for access doors tested to standards like ASTM E283 for air leakage and ASTM E331 for water penetration to reduce the risk of hidden leaks and performance issues at exterior openings.
• Gasket type and continuity: High-quality EPDM or neoprene gaskets that are continuous around the frame help keep wind, rain, and dust from bypassing the panel perimeter.
• Frame and door material: Heavy-gauge steel or aluminum with corrosion-resistant coatings is essential at exterior or semi-exposed locations.
• Integration with exterior wall assemblies: Even with a gasketed access door, performance depends on how well the frame integrates with membranes, air/vapour barriers, and cladding. Sealing and flashing must be detailed so that the panel becomes part of the continuous air and water control layers, not a weak link.

Check out our exterior access doors to learn how weatherproof access panels can protect commercial building envelopes in Canadian climates.

What Are the Top 5 Weatherproof and Gasketed Access Doors for Exterior Conditions?

As mentioned, the top weatherproof access panels in Canada are:

• BAC-ATWT Airtight & Watertight Flush Access Door
• BAC-DSD Draft Stop Access Panel
• BAC-IVHKL Invisa Hatch Air/Dust Resistant Drywall Inlay
• BAC-UAP Universal Access Panel
• BAC-UHF Aesthetic Access Panel with Hidden Flange

Let’s look at each model in detail.

1. BAC-ATWT Airtight & Watertight Flush Access Door

The BAC-ATWT access panel is the best choice when you need an airtight and watertight door at or near the exterior envelope, especially around critical spaces where contamination, air leakage, or moisture must be tightly controlled.

Its key features include:

• 16-gauge steel frame and door for robust performance.
• 5" wide trim and continuously welded connections for rigidity and a tight fit.
• EPDM co-extruded trim-seal gasket with a clamping range of 0.040"–0.118" for continuous air and water sealing.
• Continuous piano hinge for smooth operation and consistent compression on the gasket.
• Rust-inhibitive electrostatic powder coat baked white enamel finish.
• Stainless steel option with No. 4 finish for more aggressive or high-humidity environments
• Independently tested to ASTM E283/E283M for air leakage and ASTM E331 for water penetration.
• Air infiltration result of <0.1 L/s/m² (<0.01 cfm/ft²) when installed per manufacturer’s instructions.

2. BAC-DSD Draft Stop Access Panel

The BAC-DSD access door is the right fit when you need a robust steel access panel that supports draft-stopping and can be configured with gasketing for basic weather and airflow control at sheltered exterior or exterior-adjacent locations.

Its key features include:

• 16-gauge cold-rolled steel construction for strength and durability.
• Flush-to-frame door with exposed flange for enhanced draft-stopping and easier installation in non-rated masonry and gypsum drywall.
• Continuous piano hinge for a wide opening radius and reliable performance in high-traffic or frequently accessed areas.
• Spring-assisted self-closing door that returns to the closed position automatically.
• Self-latching mechanism for secure closure as standard.
• Two-way access standard on all models for flexible servicing.
• High-quality white powder coat primer finish, ready for painting or use as supplied.
• Inside panel release standard on all doors for safe egress from the service side.
• Automatic panel closer standard on all doors.

Optional upgrades include:

• A neoprene gasket to improve airflow control around the panel perimeter.
• Locking options include key-operated cylinder cam latch, mortise deadbolt, handle-operated slam latch, or mortise preparation for a cylinder.
• Stainless steel 304 #4 (brushed finish) for enhanced corrosion resistance.

3. BAC-IVHKL Invisa Hatch Air/Dust Resistant Drywall Inlay

The BAC-IVHKL access panel is your go-to option when you need a discrete, air- and dust-resistant drywall inlay on the interior face of the exterior envelope. Examples include bulkheads, ceiling voids, or soffits that interface with outdoor conditions.

Its key features include:

• Welded high-grade aluminum on the outer and inner frame for lightweight durability.
• Available with ½" or 5/8" gypsum drywall inlay to match surrounding drywall assemblies.
• Air and dust-resistant gasket/brush seal and foam perimeter seal to keep air, dust, and exterior-borne debris away from internal components.
• Concealed touch (pressure-sensitive) latches for tool-free access from the occupied side.
• Hidden hinge and latch-free exterior for a virtually invisible appearance after finishing.
• A 1/16" (1.59 mm) reveal between the frame and the door once installed and finished.
• Open hinge with a removable door for easier access in tight spaces and during more extensive inspections.
• Non-snag removable safety cable on sizes over 12" (305 mm) to help prevent accidental panel drops during servicing.

4. BAC-UAP Universal Access Panel

The BAC-UAP access panel is the most versatile option when you need a universal access solution that supports both wall and ceiling applications. This includes many non-rated exterior-adjacent situations where you’re controlling moisture and drafts through detailing and optional gasketing.

Its key features include:

• 16-gauge cold-rolled steel construction for reliable performance in commercial settings.
• 1" exposed flange for simple, predictable installations in drywall and masonry.
• Hidden pin hinge for a clean appearance on standard sizes.
• Continuous piano hinge on doors over 24" (height or width) for added stability and smooth operation.
• Screwdriver-operated cam latch as standard for straightforward, secure closure.
• High-quality white powder coat primer finish, ready to paint or leave as is.
• Moisture- and corrosion-resistant design suited to non-rated commercial environments.

Some optional upgrades include:

• Neoprene gasket to improve control over drafts and incidental moisture.
• Stainless steel 304 #4 (brushed finish) for more demanding or humid locations.
• Lock options include key-operated cylinder cam latch, hex head cam latch, pinned hex head cam latch, handle-operated cam latch, and mortise preparation.

5. BAC-UHF Aesthetic Access Panel with Hidden Flange

The BAC-UHF access panel is best for exterior-adjacent commercial interiors where you want a clean, flush appearance and labour-saving installation, but still need the option to add gasketing for better control of air and moisture migration near the envelope.

Its key features include:

• 16-gauge cold-rolled steel construction for strength and lifecycle durability.
• 7/8" deep concealed flange that embeds into drywall or masonry without messy mud or plaster work.
• Architecturally pleasing flush-to-frame design with concealed hardware for a clean interior look.
• Labour-saving installation that supports tight construction schedules and repeatable details.
• Moisture- and corrosion-resistant, high-quality white powder coat primer finish.
• Concealed, exclusive hinge design (pantograph hinge) for controlled, adjustable openings and closures.
• Screwdriver-operated cam latch as standard for simple access control.

Optional upgrades include:

• A neoprene gasket to limit air and moisture movement around the panel.
• Stainless steel 304 #4 (brushed finish) for enhanced corrosion resistance.
• Lock options include key-operated cylinder cam latch, hex head cam latch, pinned hex head cam latch, handle-operated cam latch, and mortise preparation.

Ready to align your exterior access requirements with the right models? Request a quote for BAC-ATWT, BAC-DSD, BAC-IVHKL, BAC-UAP, or BAC-UHF to discuss your project with our team.

Frequently Asked Questions on Commercial Exterior Access Panels

1. Why are exterior access panels a high-risk detail in Canadian commercial buildings?

Exterior access panels are a high-risk detail because they interrupt the air, vapour, and water control layers of the building envelope at locations that are already exposed to wind-driven rain, temperature swings, and movement.

2. When should exterior access panels be coordinated to avoid envelope failures?

Exterior access panels should be coordinated early in design, ideally during schematic design, and before final wall sections, air barrier details, and shop drawings are complete.

3. How do different exterior conditions affect access panel selection?

Different exterior conditions affect access panel selection by changing how much you need to prioritize airtightness, water resistance, corrosion protection, and ease of detailing into the wall assembly.

To Sum It Up

Weatherproof, gasketed access panels help maintain building envelope integrity by controlling air leakage and managing moisture at every exterior penetration.

The weatherproof access panels discussed above can give your team a toolkit of airtight, gasketed, and adaptable solutions to address a range of exterior and exterior-adjacent conditions without compromising design or serviceability.

Contact our team or call +1-888-327-5471 for project-specific guidance on how to coordinate gasketed and weatherproof access panels for your exterior commercial applications.
