Product Description
Product Spec Sheet:

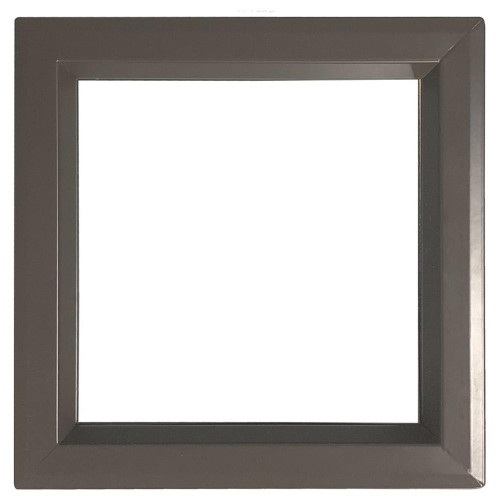

7" x 22" BAC-VLLPB-WS Low Profile Bronze Vision Lite W/ WireShield Glazing
Finding door windows that look good and meet fire code standards can be challenging. Old-style wired vision lites look industrial and bulky, plus they can easily break when hit, causing potential injuries and replacement costs.
The 7" x 22" BAC-VLLPB-WS Low Profile Bronze Vision Lite with WireShield Glazing solves these problems. With its sleek design protruding just 1/8" from the door surface, this model creates a nearly flush look that complements modern architecture.
It's crafted from durable 20-gauge steel with a bronze finish, offering superior impact resistance than standard wired glass while complying with Canadian fire code standards.
The BAC-VLLPB-WS is designed specifically for standard 1-¾" thick doors and features convenient self-attaching screws. It perfectly balances safety, aesthetics, and ease of installation for Canadian commercial and industrial buildings.
Are you wondering about other fire-rated solutions for your Canadian projects? Check out our guide to the Top 5 Fire-Rated Access Doors and Panels Every Canadian Contractor Needs for Compliance.
Why Should You Use the 7" x 22" BAC-VLLPB-WS?
- Versatile Application: The BAC-VLLPB-WS fits seamlessly into various door types, including wood, hollow metal, and composite fire-rated doors. This versatility makes it an excellent choice for new construction and renovation projects across Canadian buildings.
- Enhanced Durability: WireShield glazing is harder to break than regular wired glass, making it ideal for busy hallways in Canadian schools, hospitals, and offices.
- Sleek Appearance: With its thin frame that barely sticks out (just 1/8"), this vision lite looks modern and elegant—not bulky and industrial like old-fashioned door windows.
- Simple Installation: The self-attaching fasteners significantly reduce installation time and complexity, helping to lower labour costs—a key consideration for Canadian contractors and building managers.
- Reliable Compliance: This product is UL-listed and meets Canadian fire code standards, including CAN/ULC S104. It provides peace of mind for regulatory inspections.
Product Specifications
- Dimensions: 7" x 22"
- Door Cutout: Dimensions (W x H)
- Glazing Size: Dimensions minus 1" (W - 1" x H - 1")
- Exposed Glazing: Dimensions minus 2" (W - 2" x H - 2")
- Application: For door thickness 1-¾" and glazing thickness 3/16" - 5/16"
- Frame Material: 20-gauge cold-rolled steel
- Standard Finish: Mineral bronze powder coat
- Fasteners: #8A x 1-¼" Flathead Phillips screws to match the finish
- Fire Ratings: UL listed and labelled/stamped to ANSI/UL 10B, ANSI/UL 10C and CAN/ULC S104 when properly installed in a rated and approved door. Ratings up to 180 minutes can be achieved depending on exposed glazing size and area.
- Included Glazing: 1/4" WireShield glass
Fire-rated doors need windows that meet Canadian building codes while still looking good. The 7" x 22" BAC-VLLPB-WS Low Profile Bronze Vision Lite w/ WireShield Glazing perfectly fulfills both requirements. Whether for new construction or renovations, it delivers a balance of performance and style that modern Canadian buildings demand.
At Best Access Doors Canada, we understand the unique challenges of Canadian construction. Our product line includes specialized access solutions for Canadian buildings and climate conditions. We also offer custom solutions built to your exact project dimensions and requirements.
Transform your next project with the perfect balance of performance and aesthetics. Contact our Canadian specialists at (800) 483-0823 today. Let us help you discover how functional features can enhance rather than detract from your building's design.
