Product Description
Product Spec Sheet:

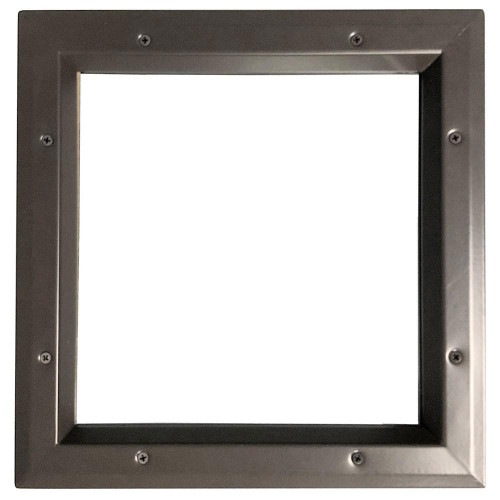

6" x 27" BAC-VLLPB-G Low Profile Bronze Vision Lite for IGUs
Regular window frames for doors often don't work well with insulated glass, causing heat loss and letting in outside noise. This is especially true in Canada, where the cold winters and hot summers demand better protection. The 6" x 27" BAC-VLLPB-G Low Profile Bronze Vision Lite for IGUs solves this problem with a solution designed specifically for insulated glass applications.
The BAC-VLLPB-G fits different door thicknesses from 1" to 3" and works with various glass thicknesses from 3/16" to 1-11/16". It's made from strong 20-gauge steel with a bronze finish that won't rust. The frame comes with self-attaching screws that make installation straightforward.
UL- and ULC-listed and compliant with Canadian fire code standards, it has fire ratings of up to 180 minutes when used with fire-rated glazing. This feature makes it an ideal choice for Canadian commercial spaces, schools, healthcare facilities, and other buildings requiring aesthetic appeal and code compliance.
Why Should You Use the 6" x 27" BAC-VLLPB-G?
- Better Insulation: The BAC-VLLPB-G securely holds insulated glazing units, giving you warmer rooms in winter, cooler rooms in summer, and quieter spaces year-round - perfect for Canada's changing seasons.
- Fire-Rated Performance: The frame is designed specifically for fire-rated applications. When installed with appropriate glazing, meeting stringent requirements for commercial and institutional buildings across Canada.
- Versatile Fit: It works with doors from 1 inch to 3 inches thick, so you can use it whether you're building new or updating old doors.
- Strong Construction: The frame is made from durable 20-gauge cold-rolled steel, ensuring lasting performance and stability even in high-traffic Canadian commercial environments.
- Flexible Design: This solution can handle projects requiring special glazing and custom door sizes while maintaining fire rating compliance across various Canadian building specifications.
Product Specifications
- Dimensions: 6" x 27"
- Application: This product is compatible with doors 1" to 3" thick and glass 3/16" to 1-11/16" thick. When ordering, please specify both the door and glass thickness.
- Door Cutout: When ordering, provide the size in width (W) and height (H)
- Glazing Size: Order size minus 1" (W - 1", H - 1")
- Exposed Glazing Size: Order size minus 2" (W - 2", H - 2")
- Protrusion: The frame may not flush if the glass thickness is within 3/4" of the door thickness or greater. The protrusion ranges from 0.11" to 0.84". Please check the chart for exact protrusion measurements.
- Frame Material: 20-gauge cold-rolled steel
- Standard Finish: Mineral bronze powder coat finish
- Fasteners: #8A Flathead Phillips screws matching the frame finish
- Fire Ratings: When installed in a fire-rated door, it is UL-certified according to ANSI/UL 10B, ANSI/UL 10C, and CAN/ULC S104. Depending on the size and exposed glass area, it can achieve fire ratings up to 180 minutes.
- Important Reminder: This product is used with Insulated Glass Units (IGUs). Glass is sold separately.
The 6" x 27" BAC-VLLPB-G Low Profile Bronze Vision Lite is compatible with fire-rated insulating glass units (IGUs) such as Firelite NT, Pyran Platinum F, and non-rated tempered glass. It also supports WireShield, Firelite Plus, Pyran Platinum L, Armrshield options (1, 2, and 3), and BRG 1.
Complementing this vision lite solution, Best Access Doors Canada carries an extensive selection of quality products for Canadian construction projects. From specialized access doors and panels to custom solutions, we offer components that enhance your building's function and aesthetics.
Have questions about the specifications or installation details? Our technical team is available at (800) 483-0823 to provide expert guidance. With years of experience supporting Canadian construction projects, we're ready to help ensure your success.
