Product Description

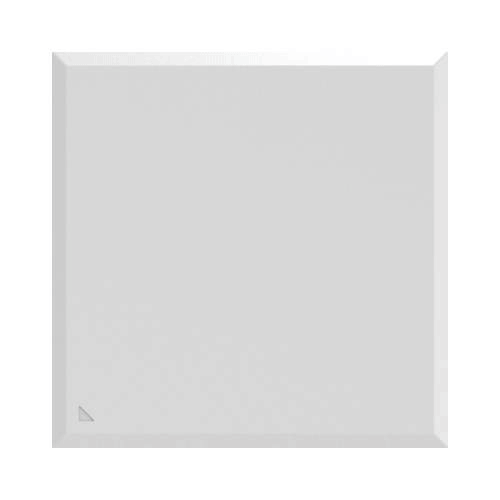

6.5" to 8" Adjustable Magnetic Closing Panel
We understand that on-the-job site, you may not have time to measure twice and cut once. Whether you are a rookie contractor or a seasoned veteran, efficiency matters, and less time spent on tasks equates to more productivity.
BAC-EZMAG 6.5" to 8" Adjustable Magnetic Closing Panel by Best Access Doors ensures professional results across your non-rated ceiling and drywall surfaces for various applications. BAC-EZMAG innovative design equates to a simple, yet highly effective access door installed with minimal time and effort.
Get to Know BAC-EZMAG
Installations Within Minutes: With our BAC-EZMAG access panel, you will achieve an aesthetic, professional finished product without requiring extensive tools, time, or labor.
Pop Off & Replace: With a powerful magnet on each corner of its frame, the panel door is removable without needing handles, keys, latches, or hinges. Just pop it off and put it back!
Adjustable to Suit Your Needs: The BAC-EZMAG features a frame that you can adjust in 3/8" increments to accommodate both square and rectangular fittings. Note: Please refer to the size table below.
Extra Doors Provided: Best Access Doors has taken the care to include 4 doors to maximize your value and convenience!
Specifications:
- Dimensions: 6.5" to 8"
- Material: 20-gauge cold rolled steel door and 24-gauge galvanized steel frame
- Hinge: No hinge type; Concealed magnetic closure
- Locking Mechanism: Four magnets, one per polymer corner
- Flange: 1 5/16" concealed flange
- Frame: 24-gauge galvanized steel with perforated folding tabs
- Rough Opening: Can range from 6.5" X 6.5" to 15.5" X 15.5"
- Retaining Cable: Two security cables
- Finish: High-quality white powder coat primer
- Packaging: 1 per box, individually packaged and preassembled
- Patented in Canada. Pat. 9,281,664 B2 in the United States.
- LEED V4 Compliant: This access door can contribute directly to a project's ability to achieve LEED certification!
BAC-EZMAG™ Size Ranges
NOTE: These are adjustable to different square or rectangular opening sizes:
- Order 6.5" X 8" for openings ranging from 6.5" X 6.5" up to 8" X 8". The actual panel size is 10.5" X 10.5"
- Order 10.5" X 12" for openings ranging from 10.5" X 10.5" up to 12" X 12". The actual panel size is 14.25" X 14.25"
- Order 14" X 15.5" for openings ranging from 14" X 14" up to 15.5" X 15.5" The actual panel size is 17.75" X 17.75"
Do You Require Assistance?
Connect with us at 1-800-483-0823 for general inquiries, custom, and large orders, or more detailed product information; we would love to help!
